ART GRADE HEAVY DUTY LP STORAGE BOX

To get started, procure the materials for the chosen box design, strength, aesthetics, shape and size required. Specialist arts shop suppliers are a good point of call. For a solid art grade acid free reinforced box as the one demonstrated, cost of materials approx $50 including art grade consumables. Time to make a box of this type 3-4 hours, plus allowing drying time between gluing steps. The technique of crafting structural 3-D objects in paper is like this is generally called 'Paper Engineering'.

Mark out the size of the box lid top and base. The          sides are to be glued to the edges for this design using 3mm heavy  duty art grade acid free base board

Mark out the size of the box lid top and base. The        sides are to be glued to the edges for this design using 3mm heavy  duty art grade acid free base board

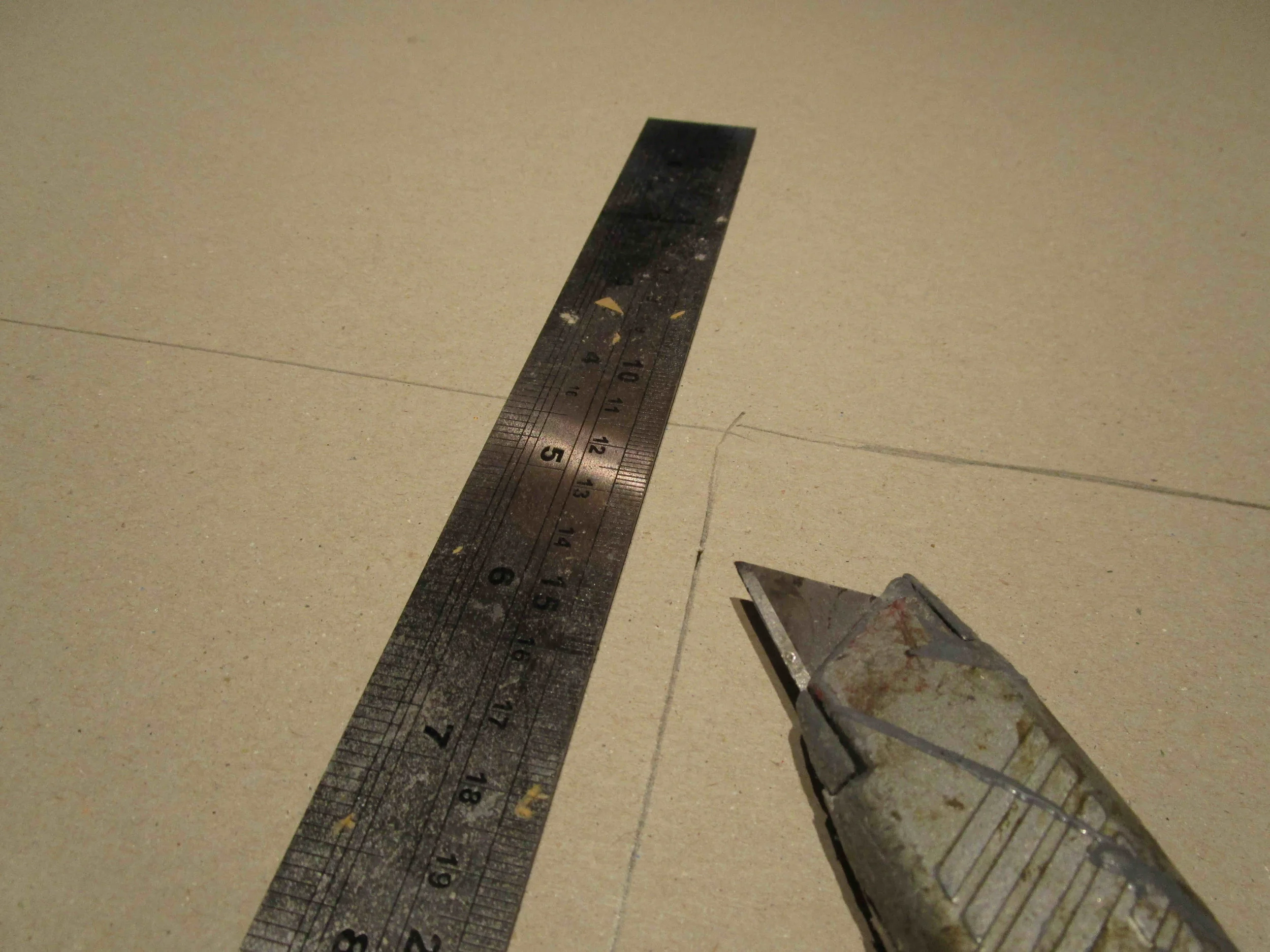

Mark cutting lines. Knife is a Stanley 10-299

Mark cutting lines. Knife is a Stanley 10-299

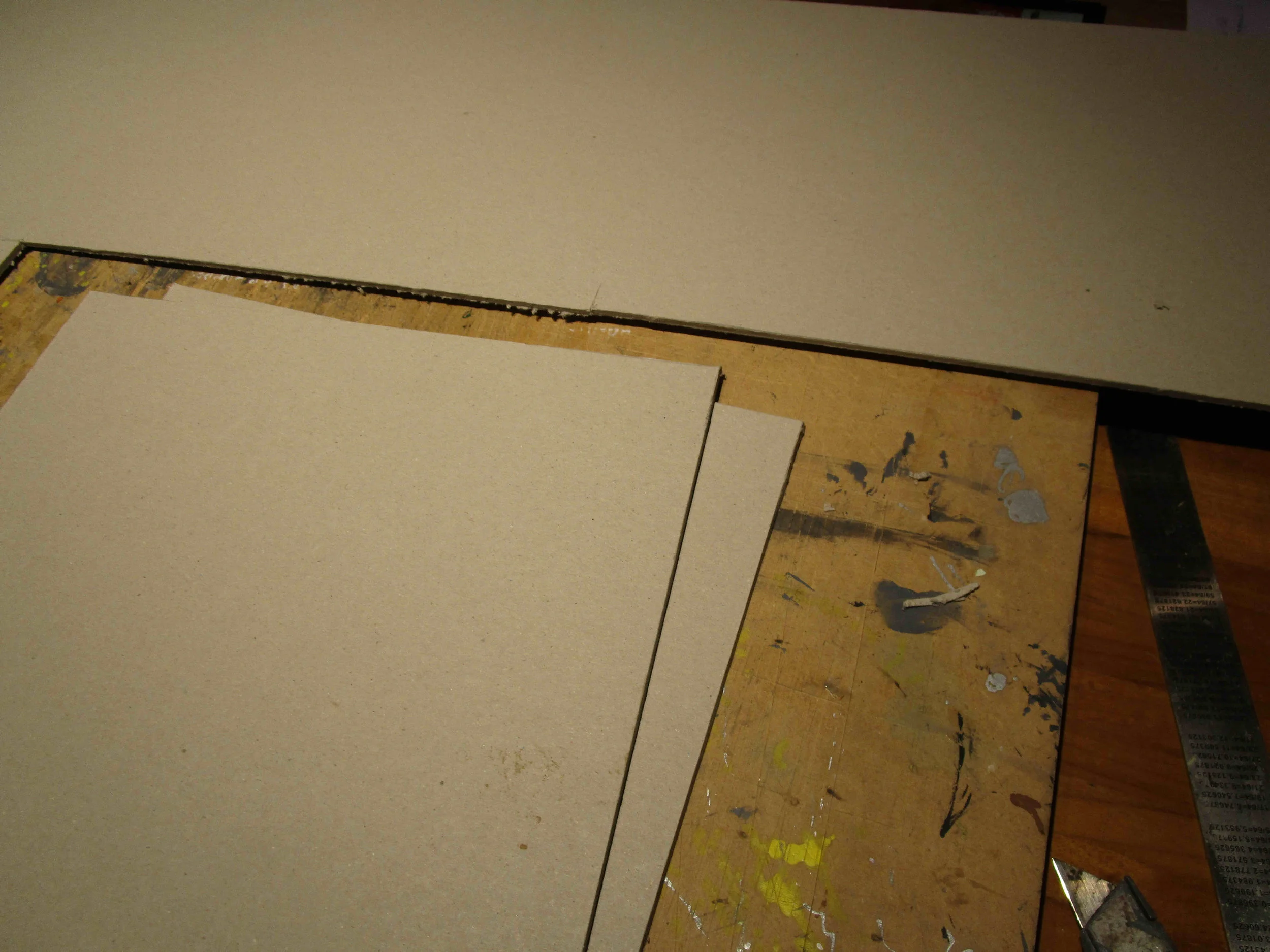

Check and trim bases to within 0.5mm same, and mark left and right sides

Check and trim bases to within 0.5mm same, and mark left and right sides

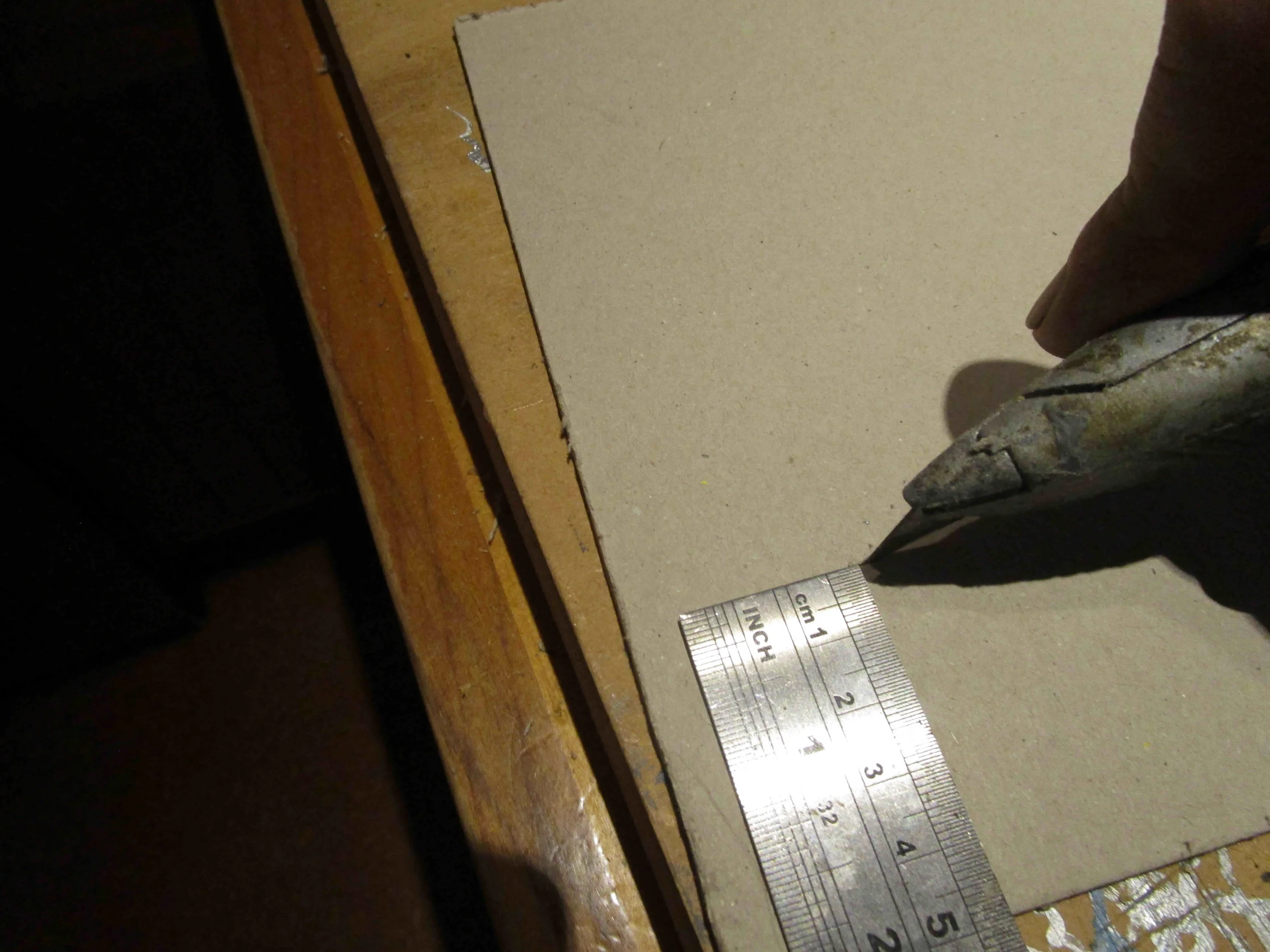

Marking out the sides

Marking out the sides

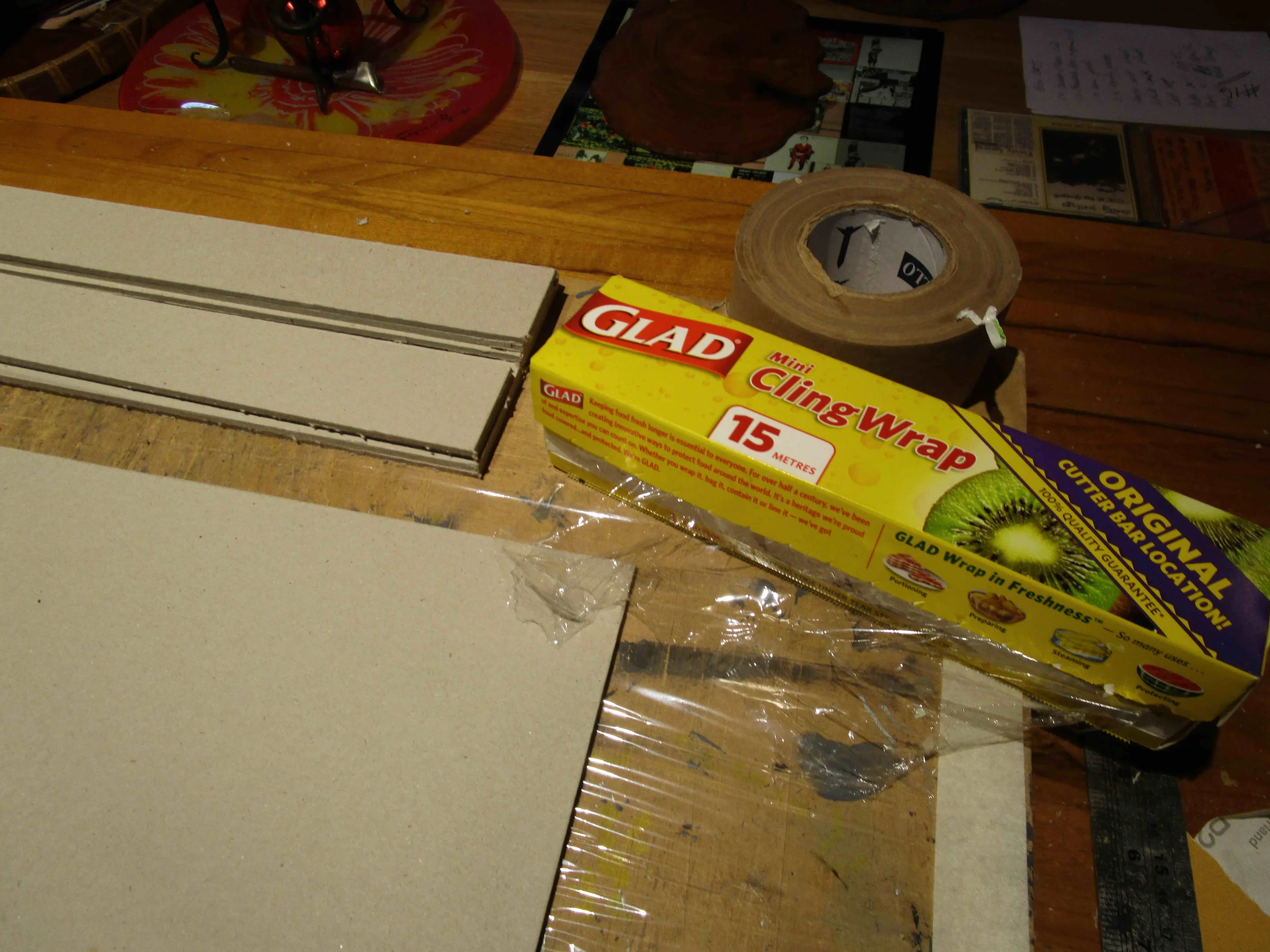

Line gluing and cutting board with cling wrap

Line gluing and cutting board with cling wrap

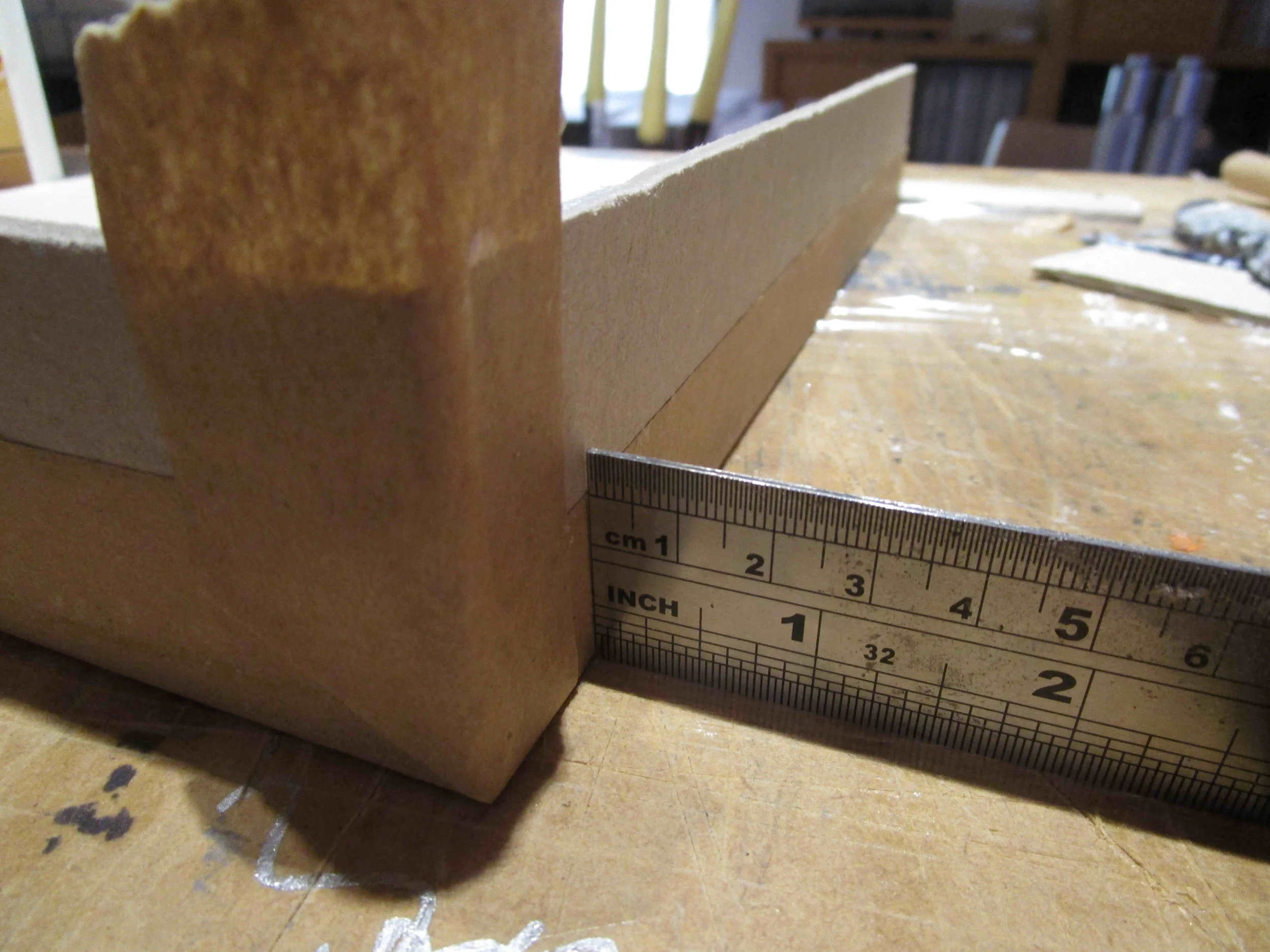

Tape corners and check for square within 0.5mm. Corners also PVA glued when fitting

Tape corners and check for square within 0.5mm. Corners also PVA glued when fitting

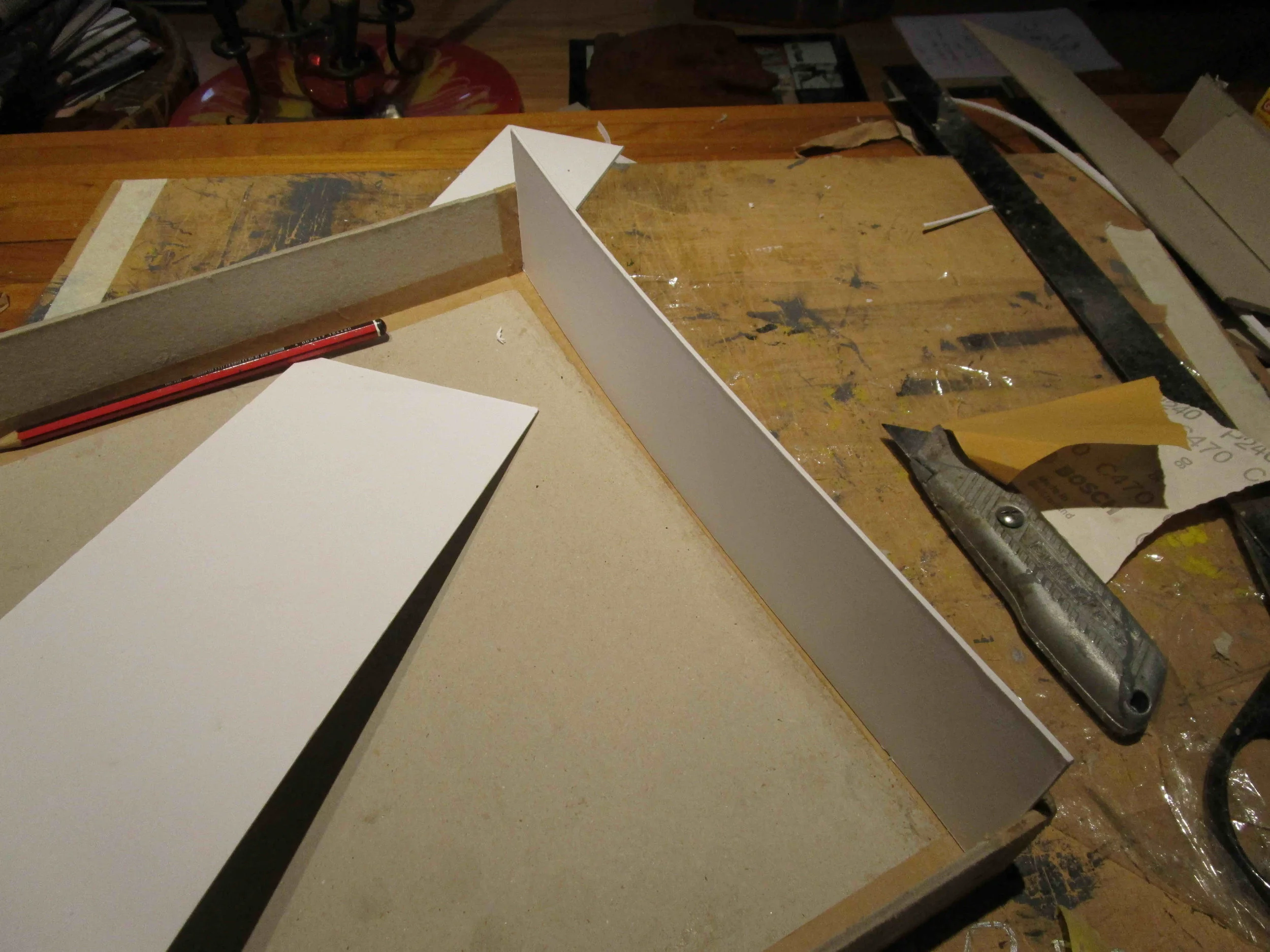

Fitting cut lid guides. Acid free photo glue to avoid warping, PVA to help the budget. When fitting the box lid, ensure that the lid is fitted in place on the box before gluing the last 2 sides, to ensure a snug fit.

Fitting cut lid guides. Acid free photo glue to avoid warping, PVA to help the budget. When fitting the box lid, ensure that the lid is fitted in place on the box before gluing the last 2 sides, to ensure a snug fit.

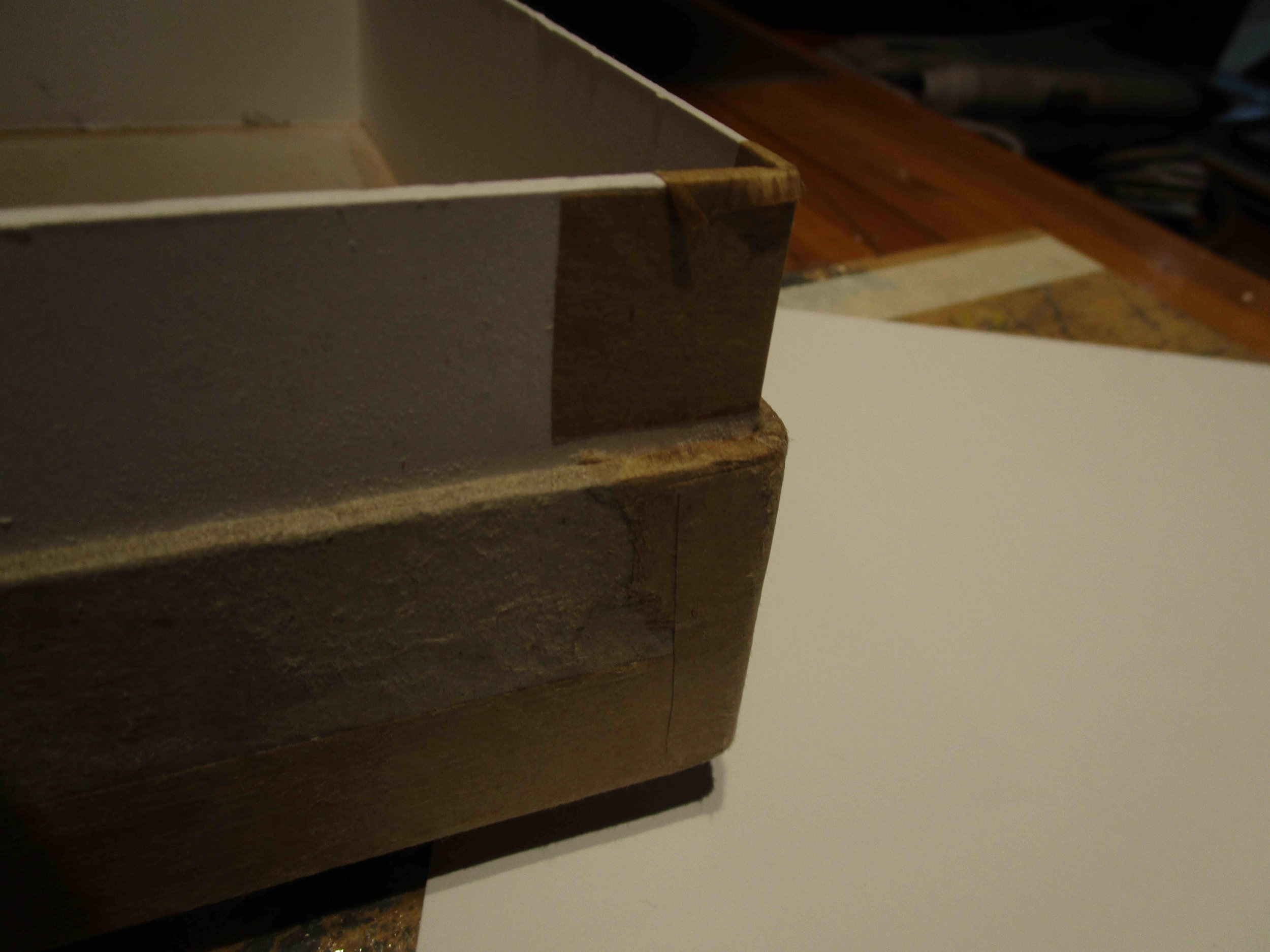

Corner detailing and reinforcing

Corner detailing and reinforcing

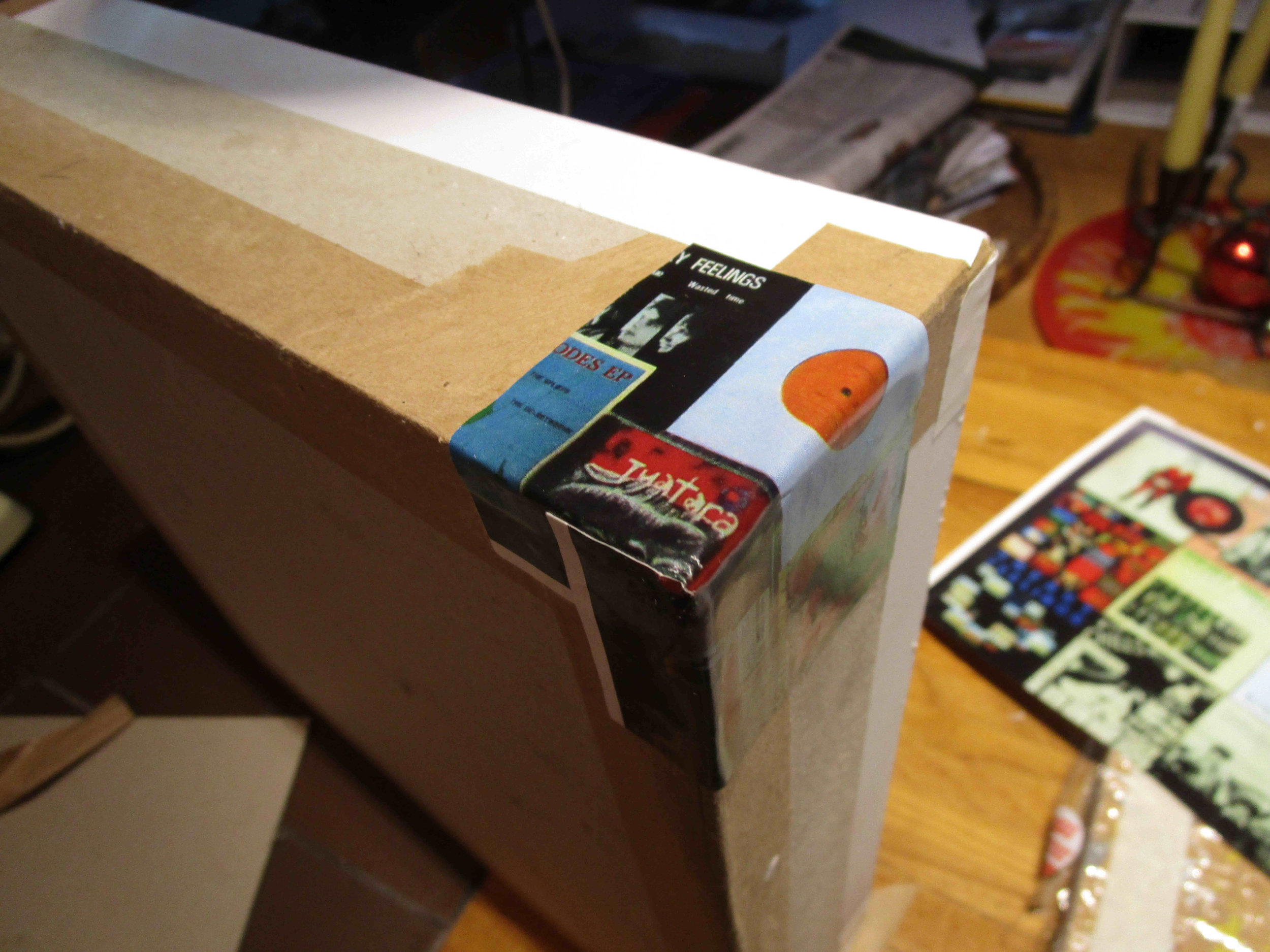

Outer corner lining. The outer lining chosen is the insert from the LP set, being a stitched photo montage of my Sneaky Feelings record collection.

Outer corner lining. The outer lining chosen is the insert from the LP set, being a stitched photo montage of my Sneaky Feelings record collection.

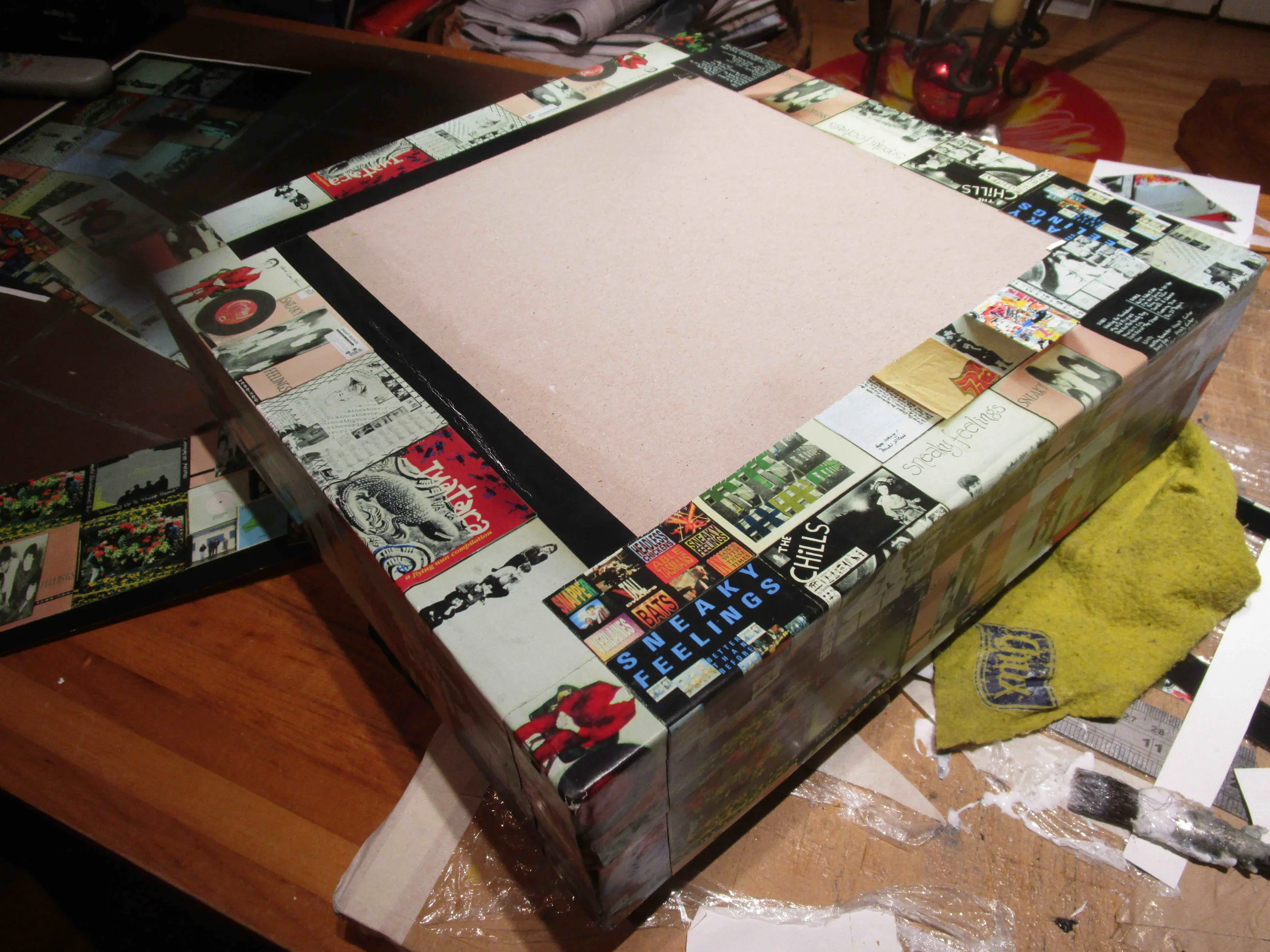

Edge and corner lining complete

Edge and corner lining complete

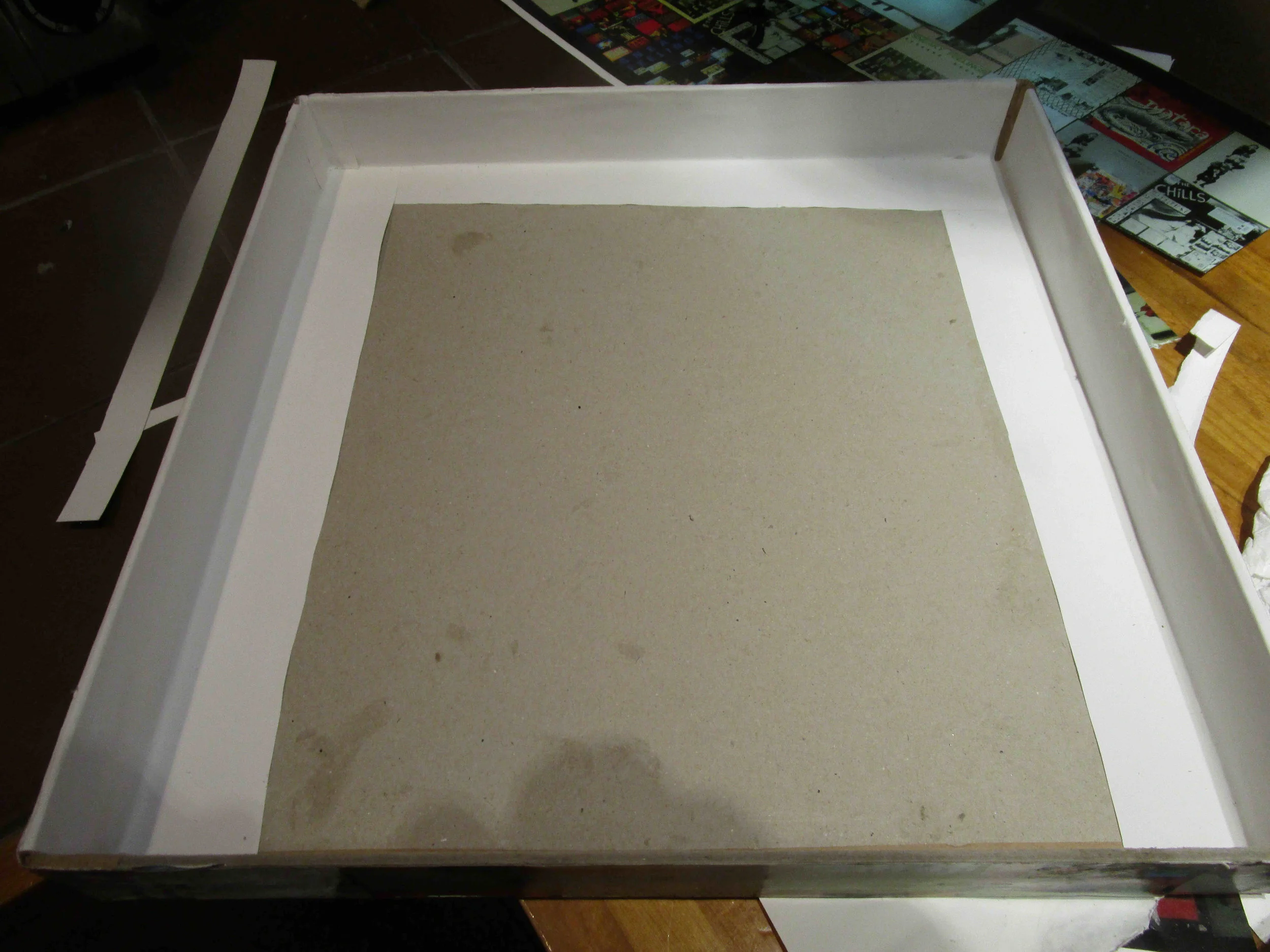

Inner box lid side lining complete

Inner box lid side lining complete

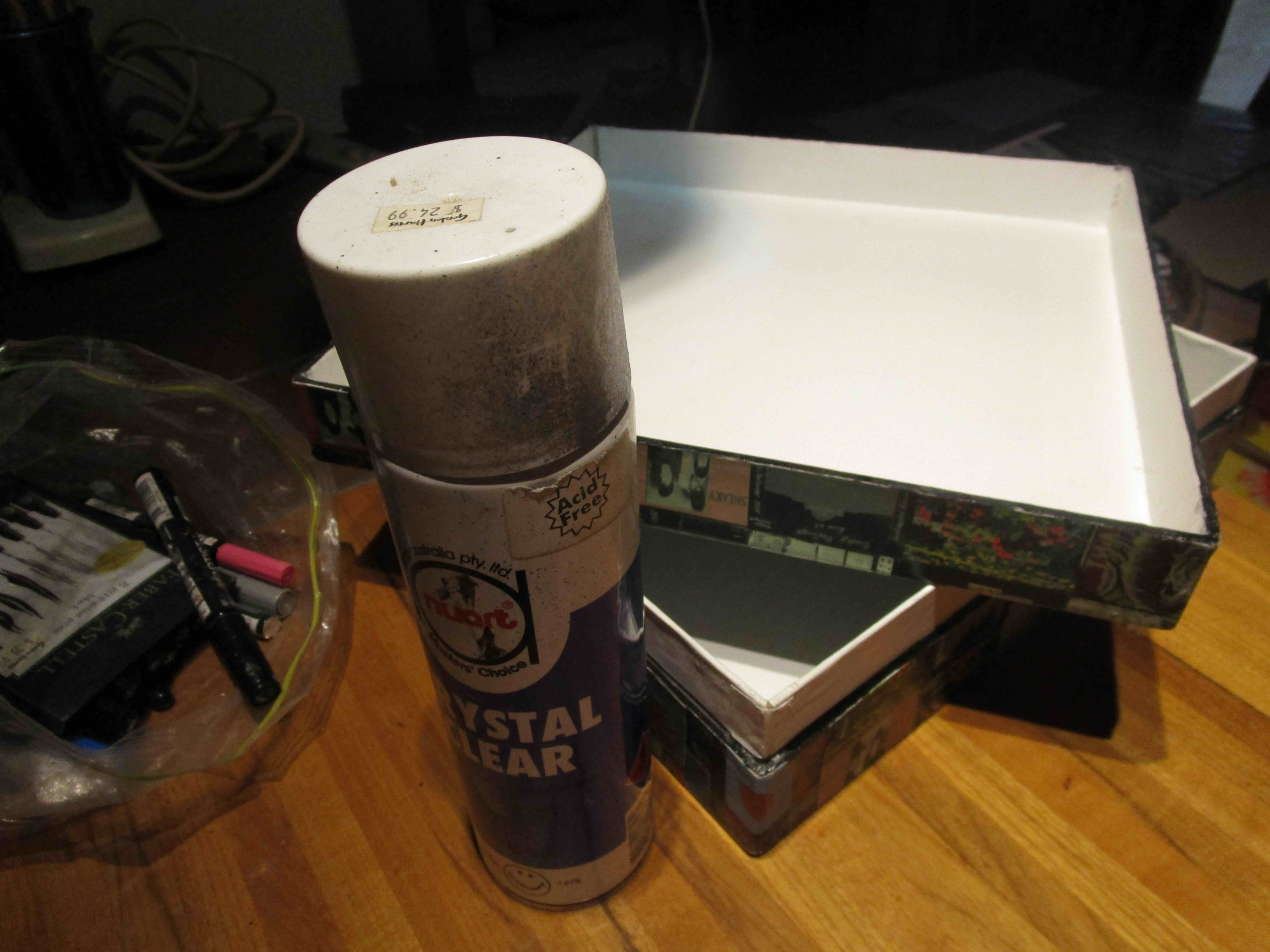

Preferably next day, seal box with painting and photo acid free gloss varnish. Several light coats to desired finish. Any small blemishes can be repaired using oil pens of the correct colour, or blended in situ before varnishing. Apply in a well ventilated, and use a face mask.

Preferably next day, seal box with painting and photo acid free gloss varnish. Several light coats to desired finish. Any small blemishes can be repaired using oil pens of the correct colour, or blended in situ before varnishing. Apply in a well ventilated, and use a face mask.

Contents packed for export. Bubble wrap and I prefer to use low tack masking tape, being easier to remove than either standard masking tape, or cellotape.

Contents packed for export. Bubble wrap and I prefer to use low tack masking tape, being easier to remove than either standard masking tape, or cellotape.


Play suitable motivational music

Play suitable motivational music

Cut on marks, keep non-cutting hand clear or clamp the steel ruler to be safe

Cut on marks, keep non-cutting hand clear or clamp the steel ruler to be safe

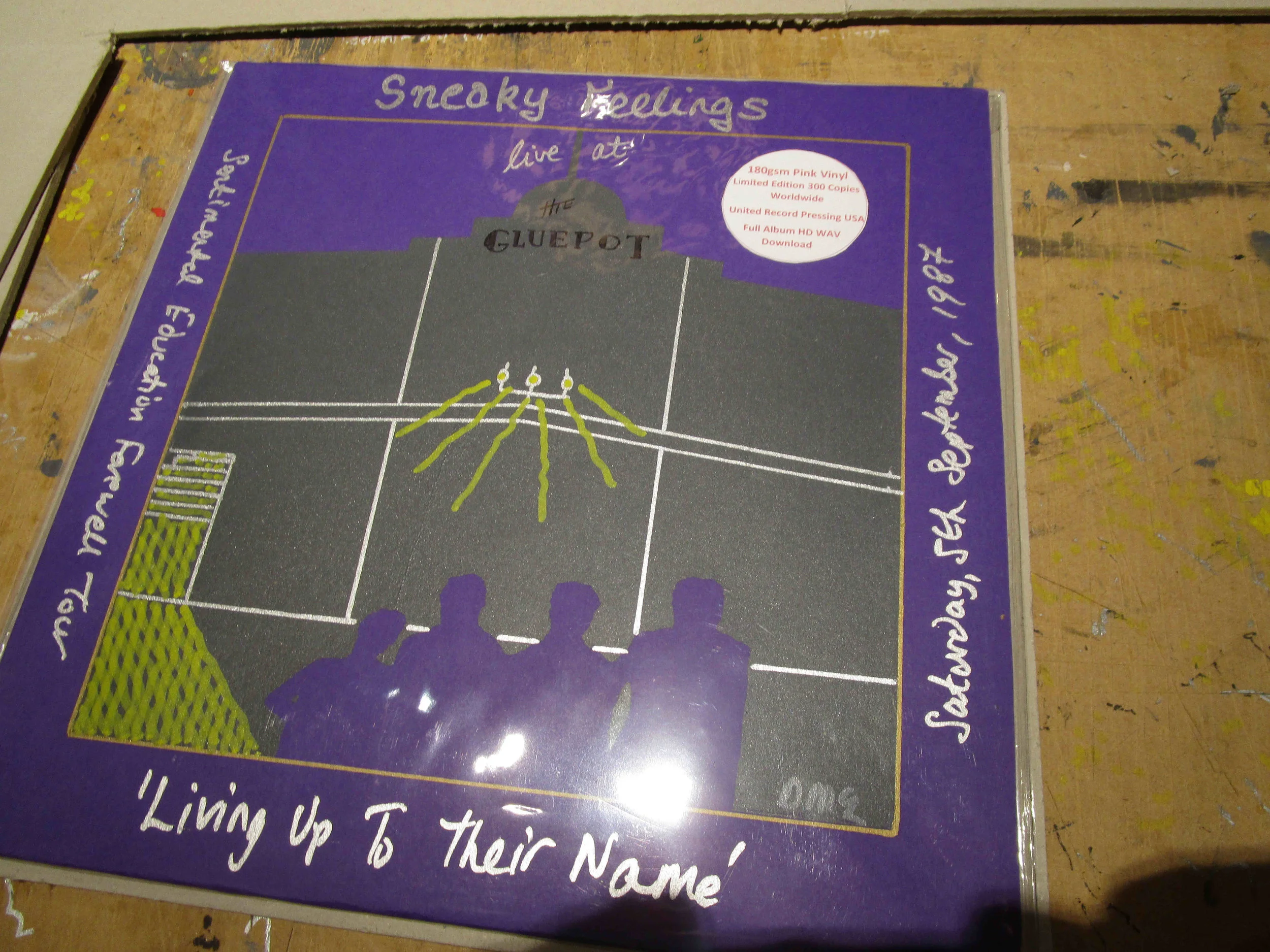

Test fit LP of desired size on the cut and trimmed bases

Test fit LP of desired size on the cut and trimmed bases

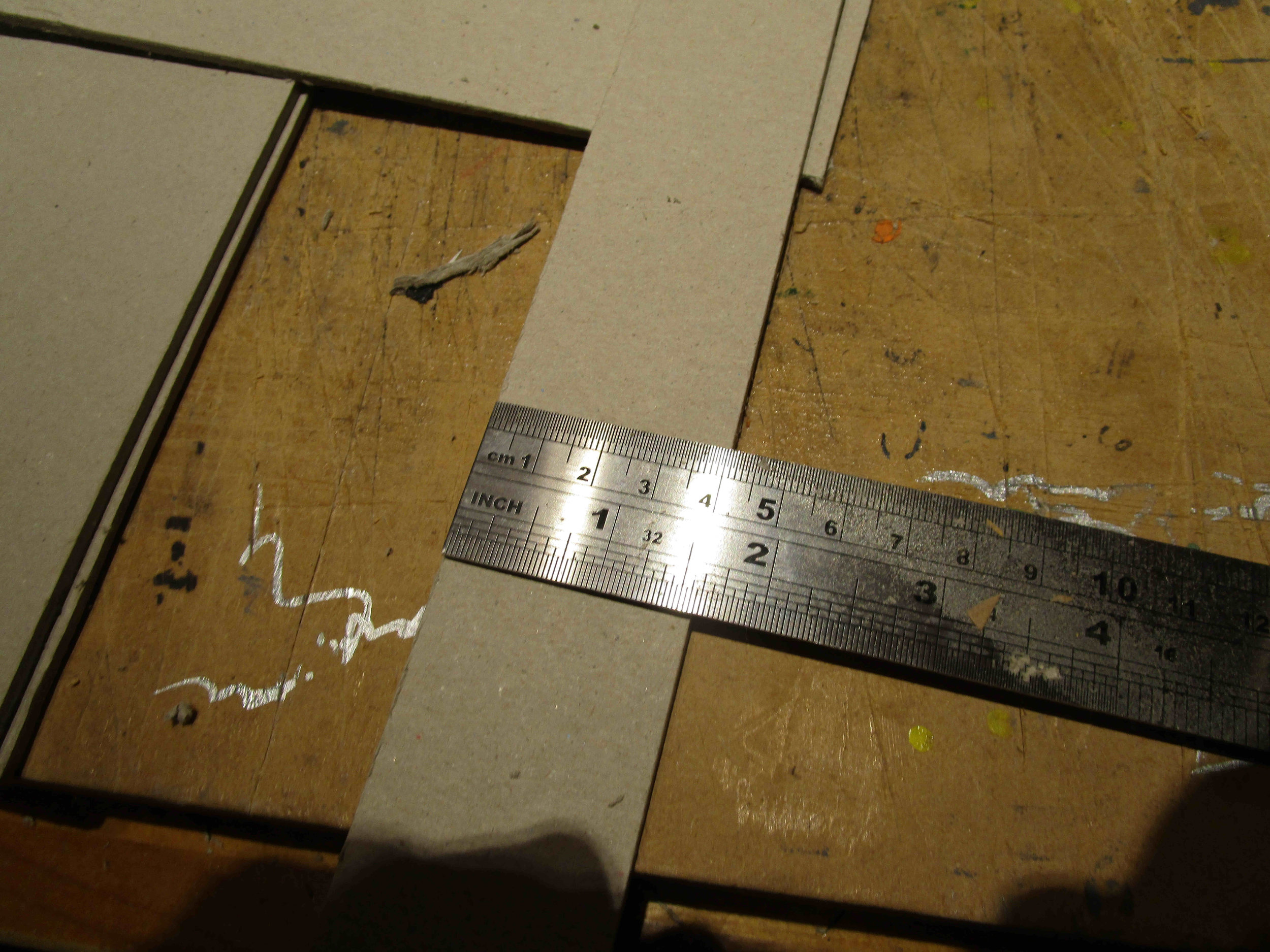

Cut and check for desired dimensions sides

Cut and check for desired dimensions sides

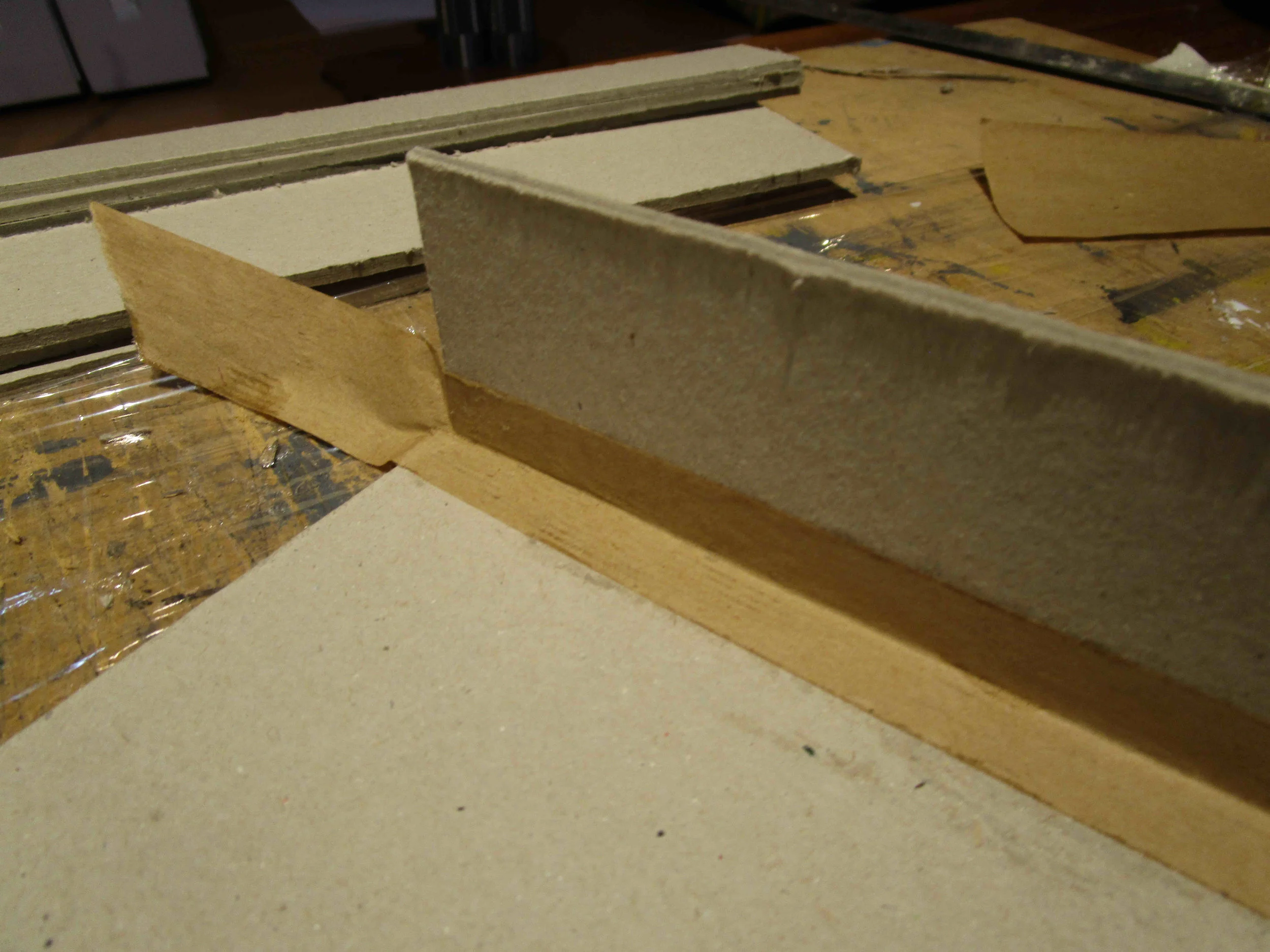

Align side to base, and leave a 3mm gap. Adher book repair acid free tape to outside first. Brush in industrial cross-linking PVA glue in to the gap before lifting the side square. Tape inside.

Align side to base, and leave a 3mm gap. Adher book repair acid free tape to outside first. Brush in industrial cross-linking PVA glue in to the gap before lifting the side square. Tape inside.

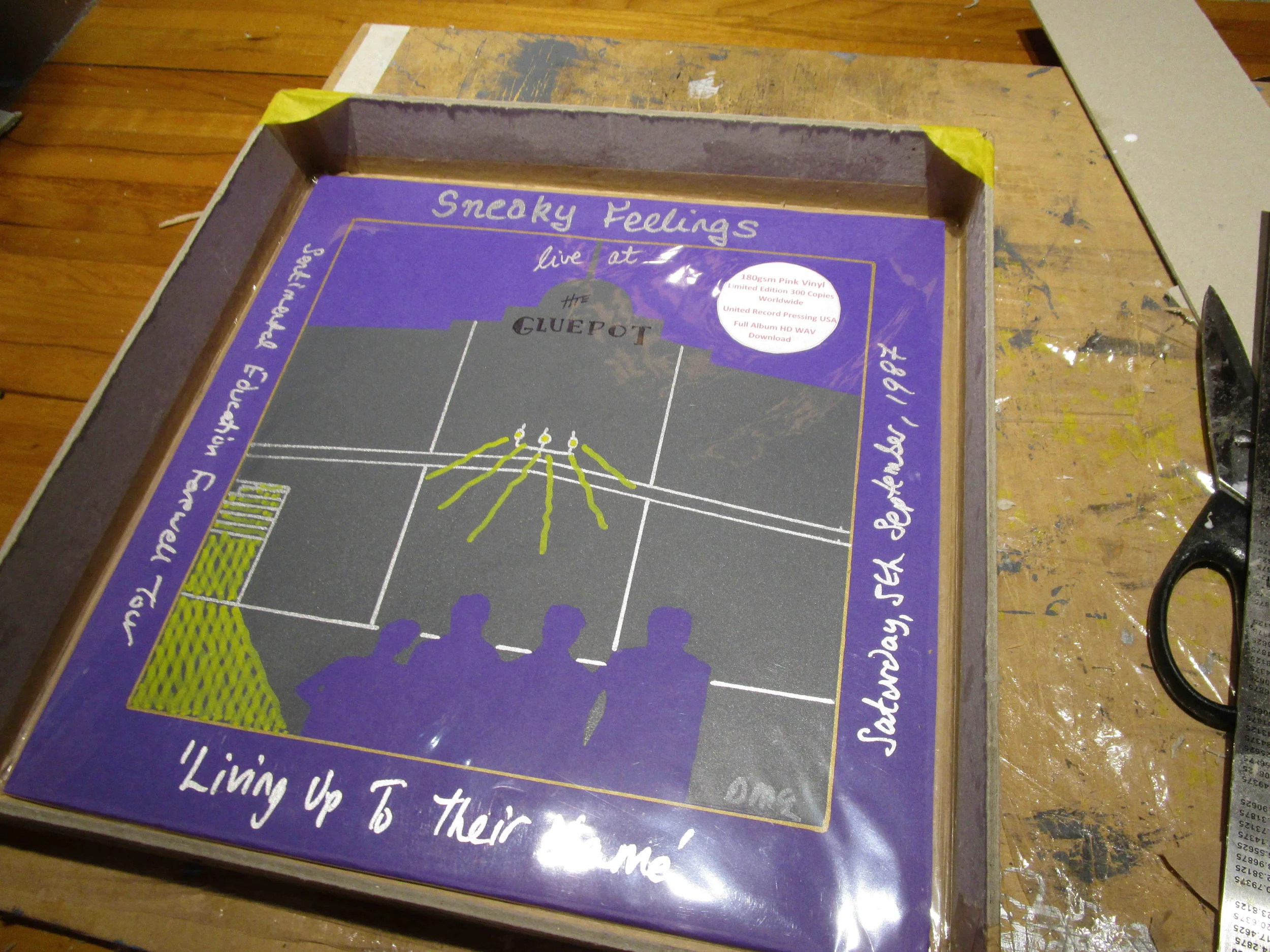

All sides on, check and brace alignment and for square while glue sets. Test fit LPs, Allowance for lid guides

All sides on, check and brace alignment and for square while glue sets. Test fit LPs, Allowance for lid guides

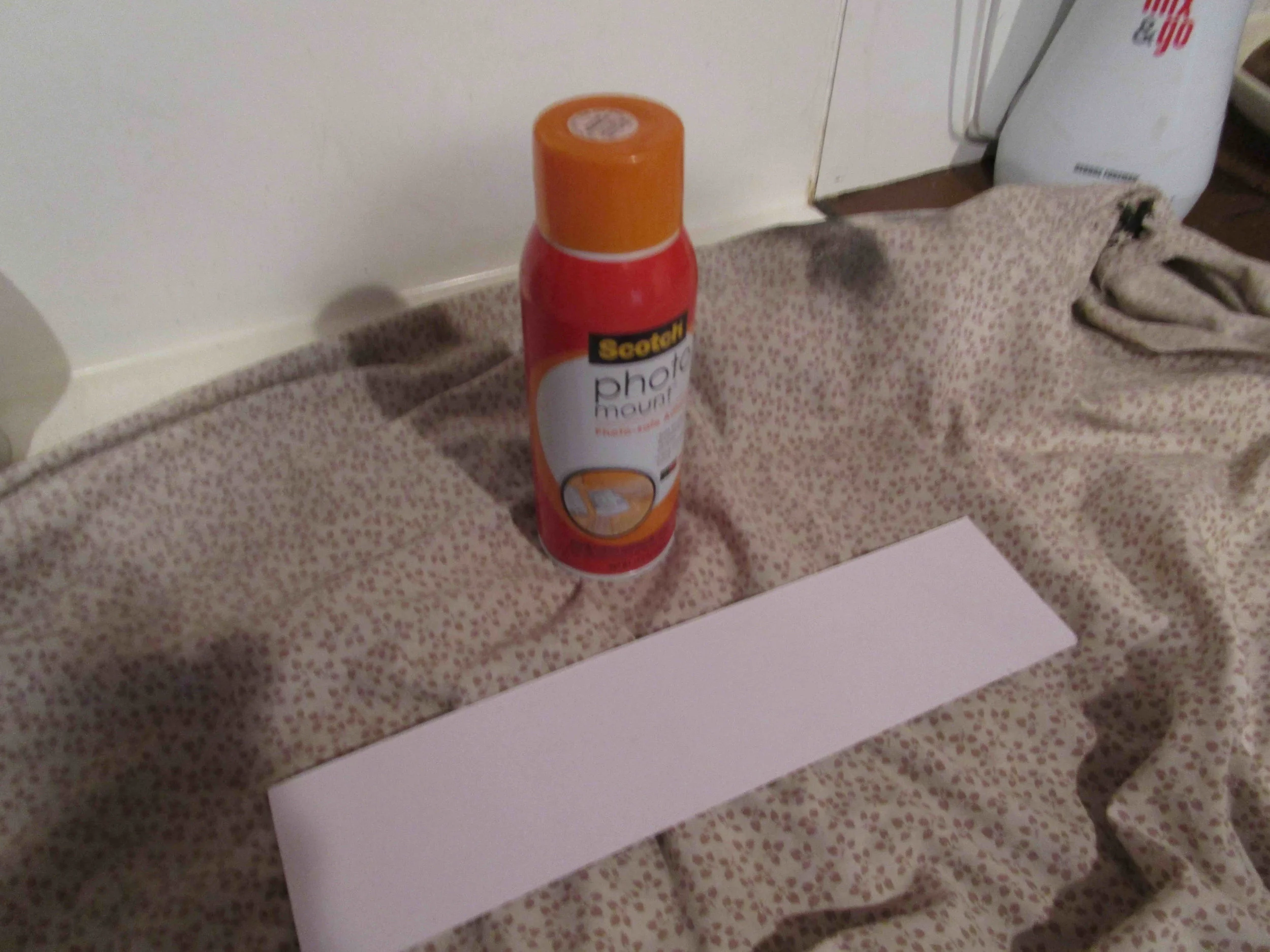

Photo glue, also use on large surfaces such as the top and bottom box linings

Photo glue, also use on large surfaces such as the top and bottom box linings

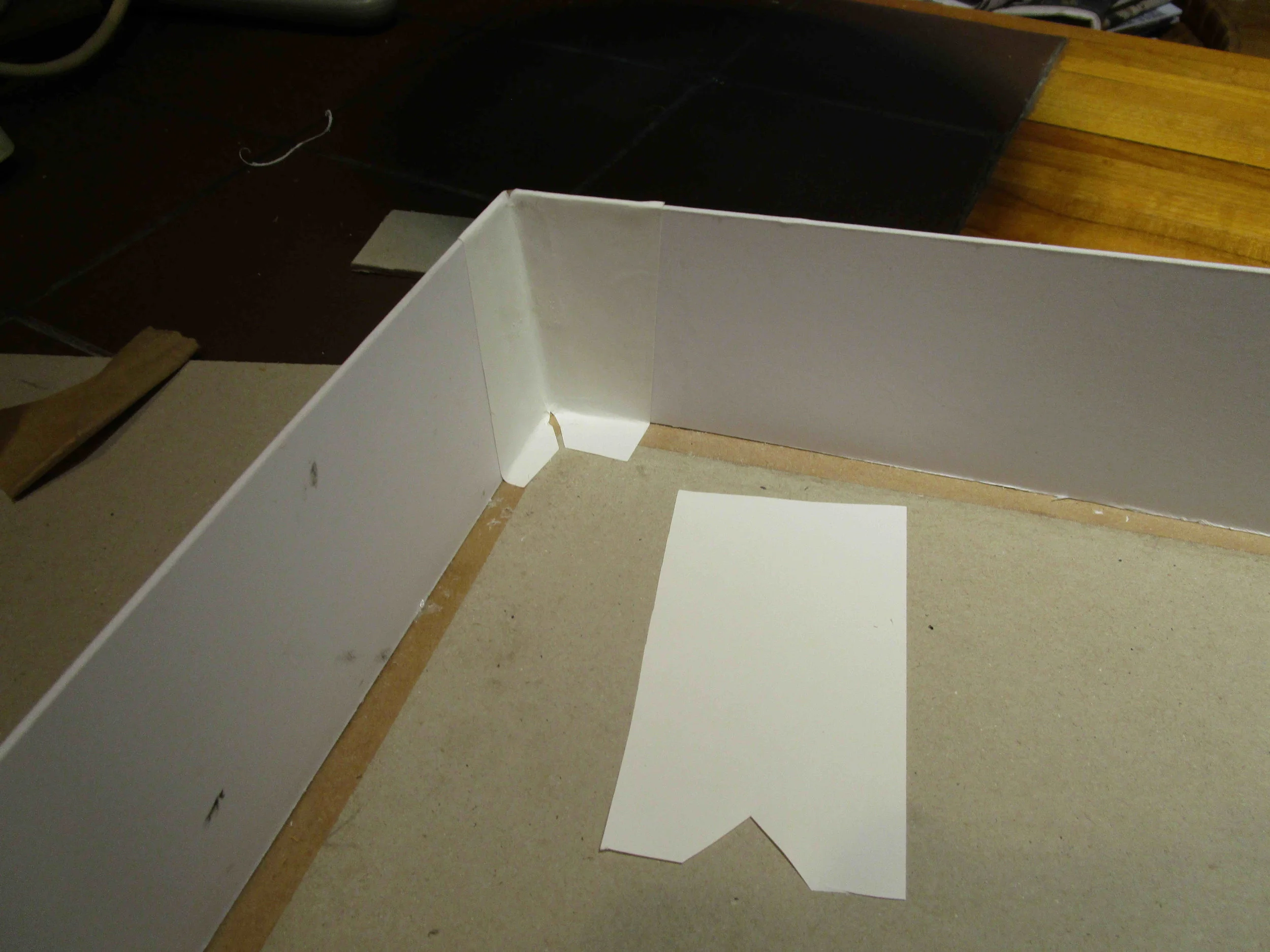

Corner lining first, paper is gloss 200g photocopy paper

Corner lining first, paper is gloss 200g photocopy paper

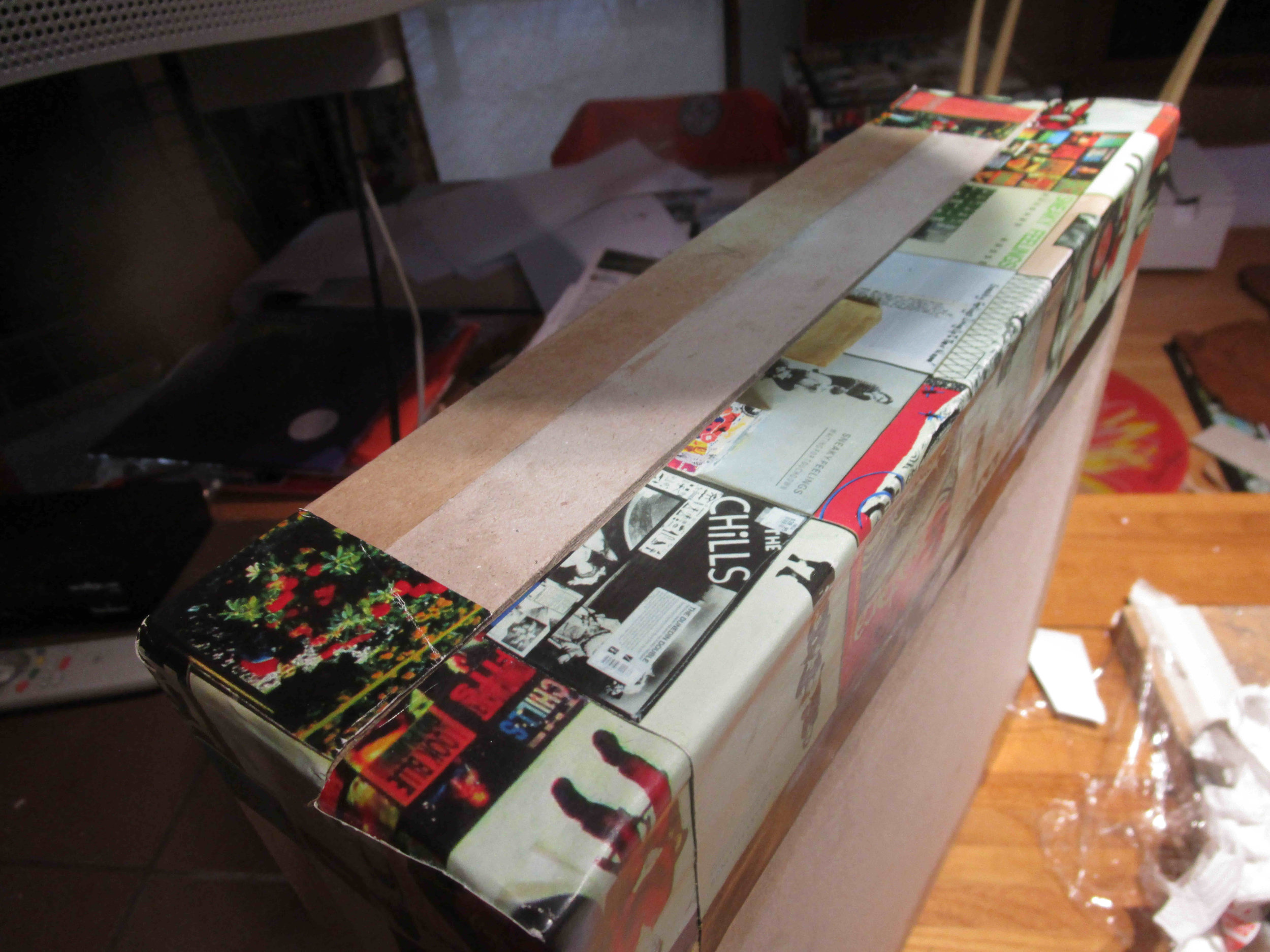

Edge lining, top. The patterns can be made to continue form the lid to the base.

Edge lining, top. The patterns can be made to continue form the lid to the base.

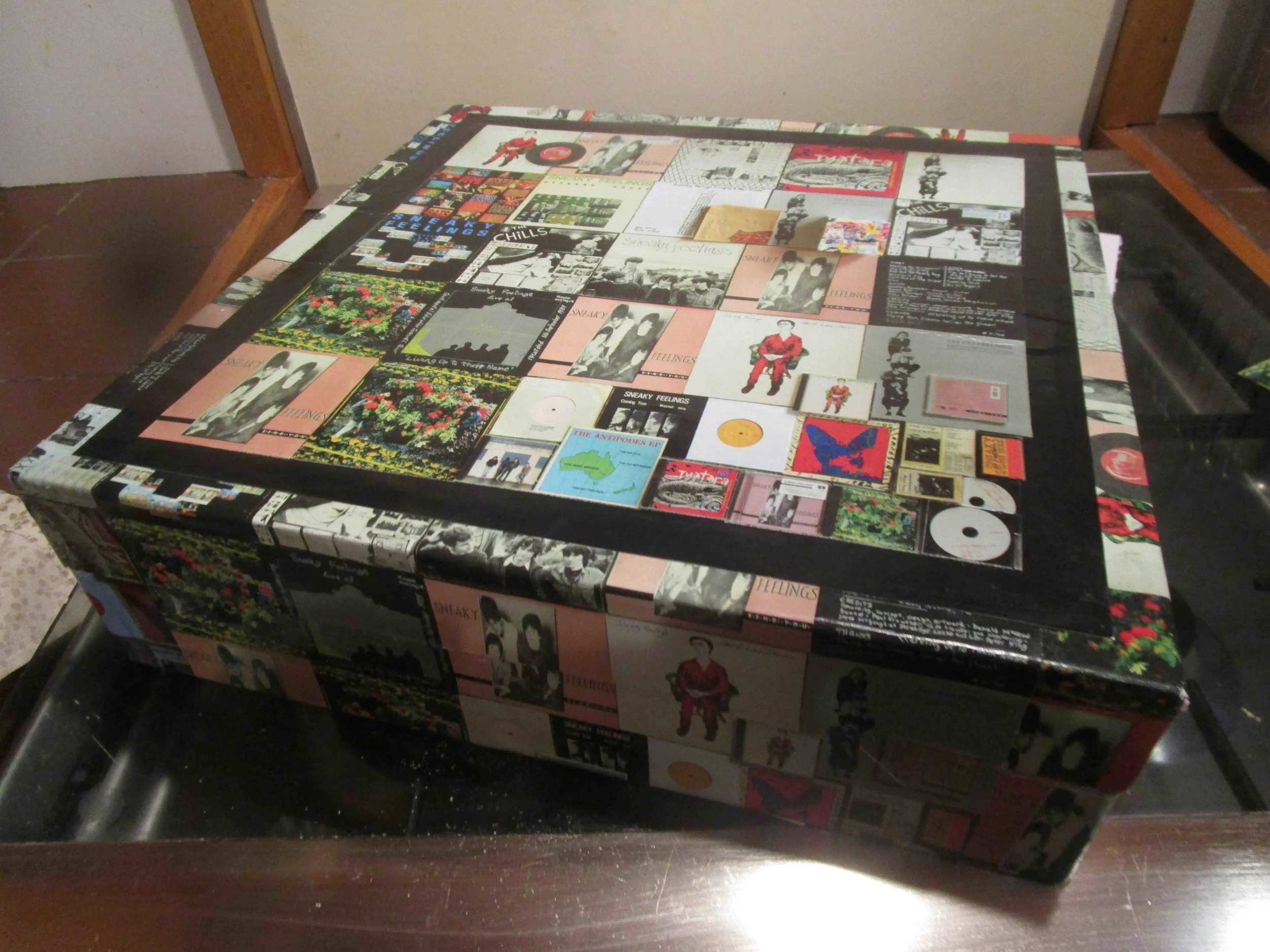

The top lining in place. Use photo glue for the main part, PVA around the edges for better adhesion, Wipe away excess PVA quickly with a damp cloth

The top lining in place. Use photo glue for the main part, PVA around the edges for better adhesion, Wipe away excess PVA quickly with a damp cloth

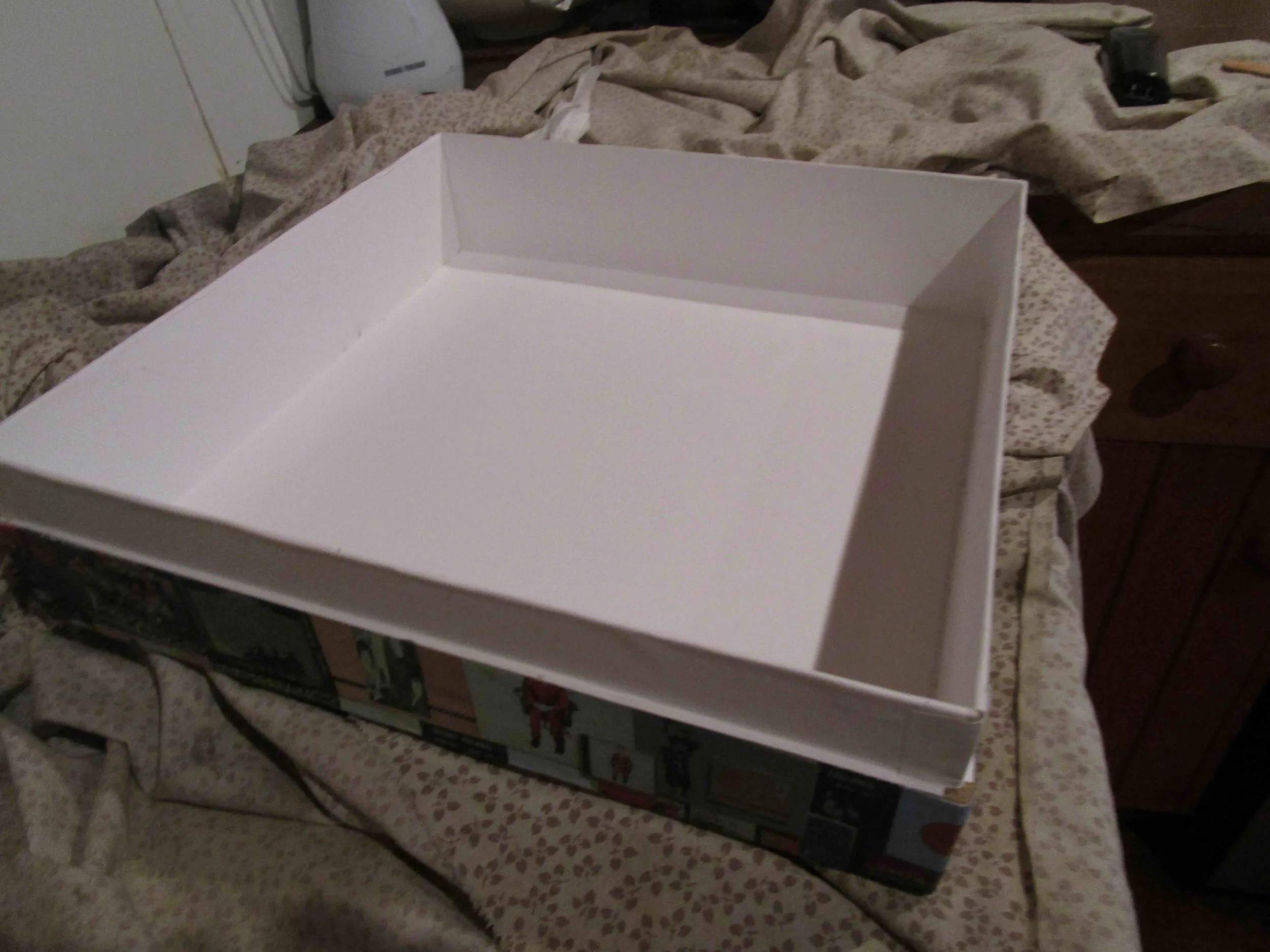

Box base lining complete. Fold ledges for a neat fit.

Box base lining complete. Fold ledges for a neat fit.

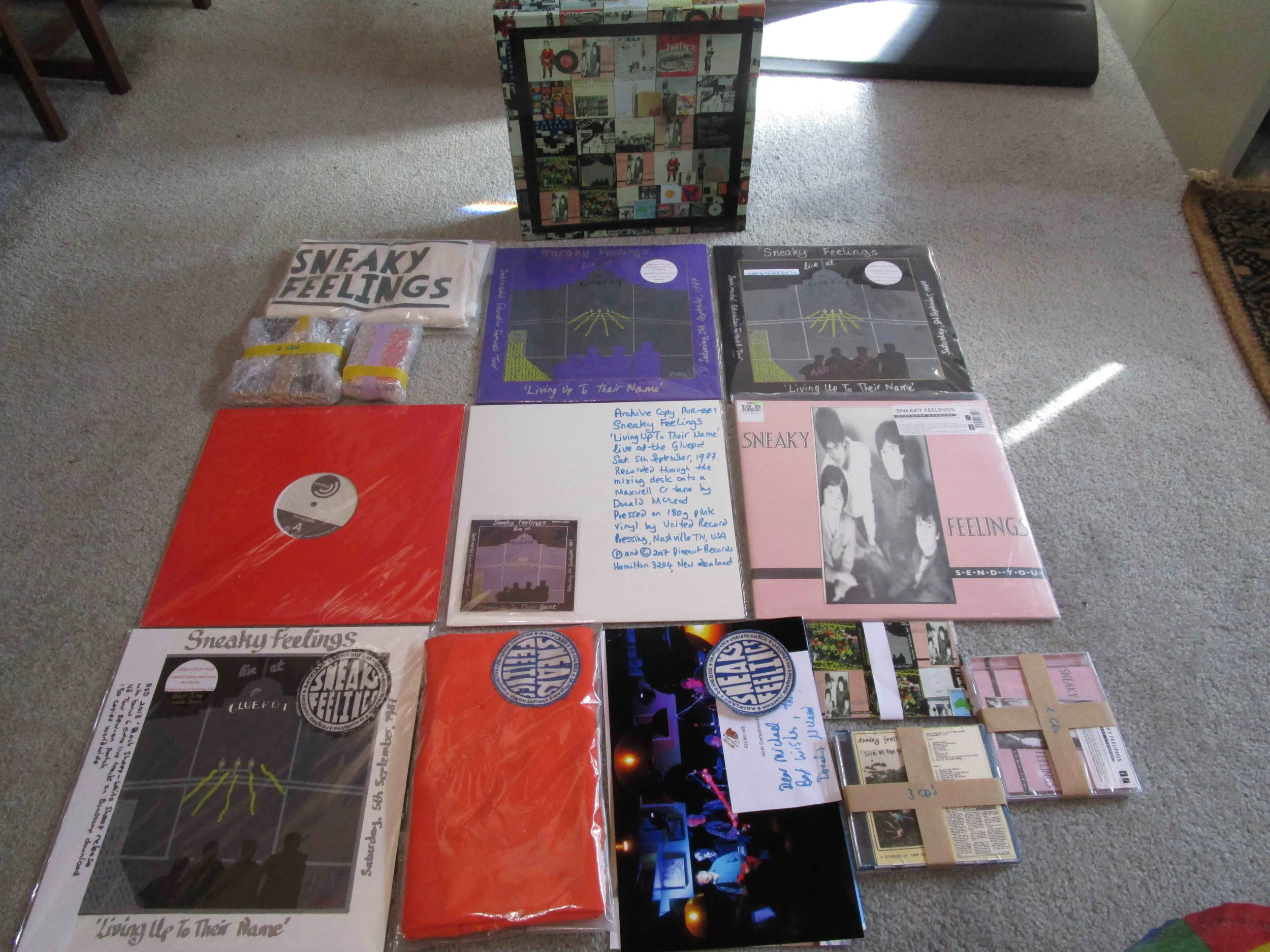

Contents designed to fit this box, comprising 6 LPs, 7 CDs, 1 cassette tape, 2 t-shirts, and various posters, photos, and tour collections.

Contents designed to fit this box, comprising 6 LPs, 7 CDs, 1 cassette tape, 2 t-shirts, and various posters, photos, and tour collections.

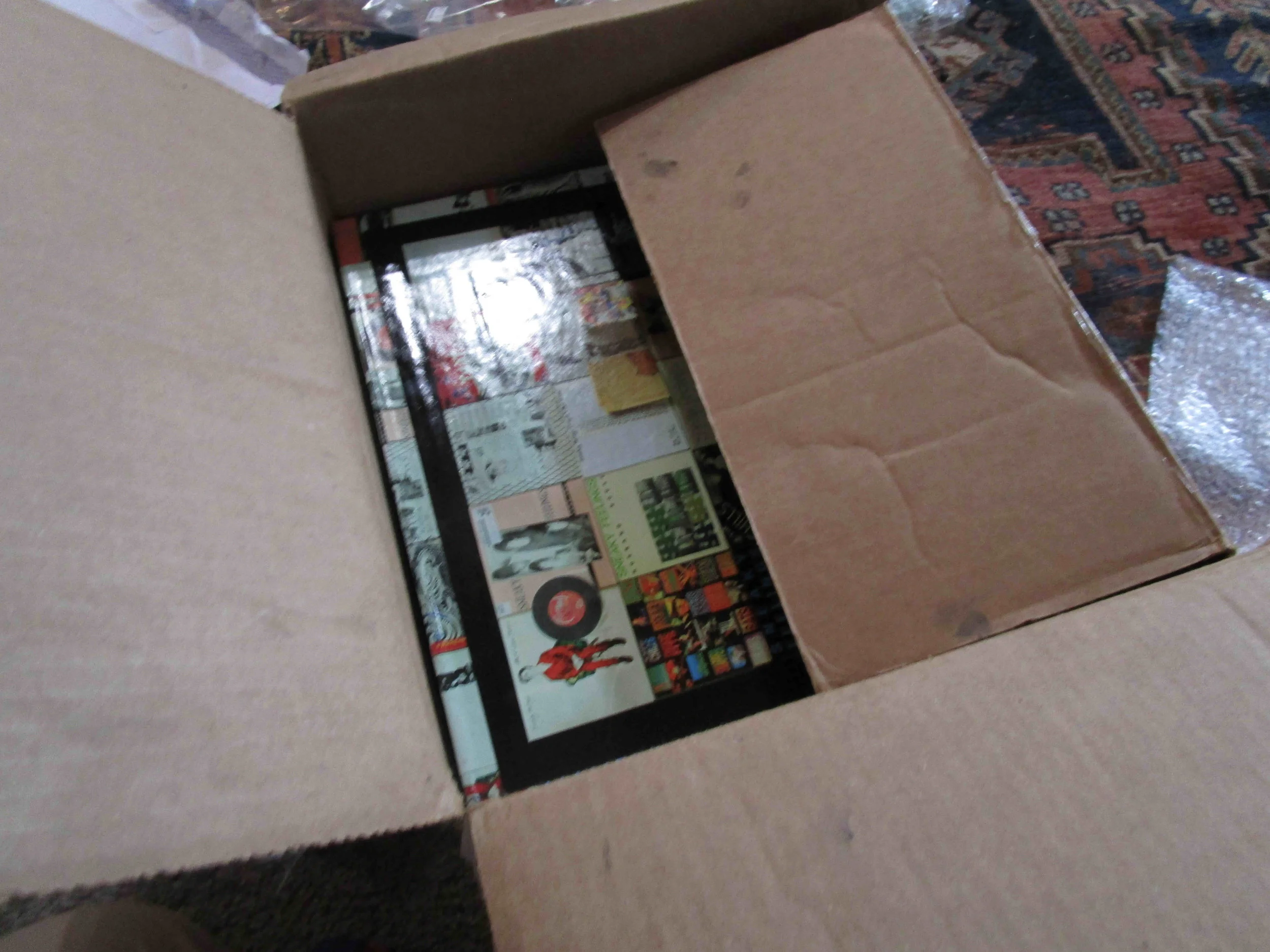

Lid is already a snug fit on the box. being packed in to a outer carton, being a recycled carton from the pressing plant used to press the vinyl for this release..

Lid is already a snug fit on the box. being packed in to a outer carton, being a recycled carton from the pressing plant used to press the vinyl for this release..
